Structural products
Angles.
Equal and unequal hot-rolled angles for structural and engineering applications.
Bring us your briefProduct information
Behind every build is a decision about steel.
An angle on a drawing can become part of a tower, a frame or a structure still taking shape. Tell us what yours needs to do, and bring the specification to Madhur.
Our listed chart sizes are standard references, not an exhaustive limit. Ask our technical team about custom dimensions or specifications; we’ll confirm what is feasible for your requirement.
- Chart-listed sections
- The September 2025 chart lists equal-angle entries from 40 × 40 to 200 × 200 mm and two unequal 45 × 30 mm entries. Confirm your requirements with Madhur.
- Section references
- Specify your required grade, standard and tolerances in the enquiry; confirm the applicable section reference with Madhur.
- Enquiry details
- Section or form, exact dimensions, grade, quantity, destination and required delivery date.
Characteristics
Built for the application.
Legs and thickness to specify
Equal and unequal forms
Processing and finish to discuss with Madhur
Applications
Where the form is used.
Explore common applications for this steel form. Tell us about your project's requirements when you enquire.
- Transmission and communication tower structures
- Buildings, bridges and general structural support
- Signage, fencing and scaffolding
- Windmill lattice towers, trailers and warehouse structures
Angles / the details
The strength
of a right angle.
Two legs meet at 90 degrees to form an L-section. Equal angles have legs of the same length; unequal angles have two different leg lengths. Explore the sizes printed in the chart before discussing your own requirement.
Dimensions
Find the form.
Read the figures.
Browse equal and unequal entries from the September 2025 Angles chart. Dimensions describe the legs and thickness; mass per metre is the chart’s listed weight for one metre. Confirm grade, tolerances, availability and suitability with Madhur.

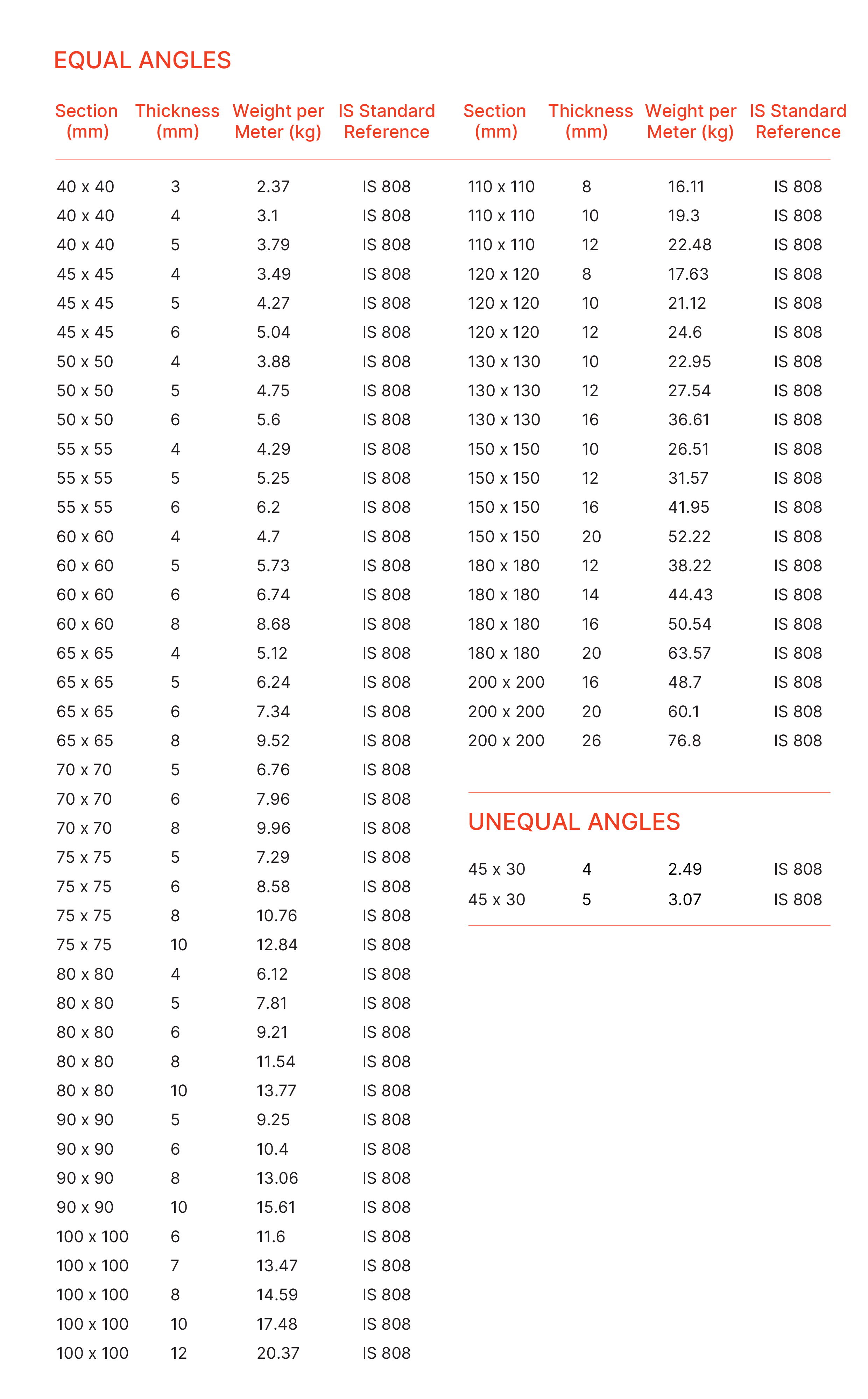

Equal & unequal Angles · September 2025 source image. Chart entries do not confirm stock or a project standard.
| Legs (mm) | Thickness (mm) | Mass per metre (kg/m) |
|---|---|---|
| Equal angles | ||
| 40 × 40 | 3 | 2.37 |
| 40 × 40 | 4 | 3.1 |
| 40 × 40 | 5 | 3.79 |
| 45 × 45 | 4 | 3.49 |
| 45 × 45 | 5 | 4.27 |
| 45 × 45 | 6 | 5.04 |
| 50 × 50 | 4 | 3.88 |
| 50 × 50 | 5 | 4.75 |
| 50 × 50 | 6 | 5.6 |
| 55 × 55 | 4 | 4.29 |
| 55 × 55 | 5 | 5.25 |
| 55 × 55 | 6 | 6.2 |
| 60 × 60 | 4 | 4.7 |
| 60 × 60 | 5 | 5.73 |
| 60 × 60 | 6 | 6.74 |
| 60 × 60 | 8 | 8.68 |
| 65 × 65 | 4 | 5.12 |
| 65 × 65 | 5 | 6.24 |
| 65 × 65 | 6 | 7.34 |
| 65 × 65 | 8 | 9.52 |
| 70 × 70 | 5 | 6.76 |
| 70 × 70 | 6 | 7.96 |
| 70 × 70 | 8 | 9.96 |
| 75 × 75 | 5 | 7.29 |
| 75 × 75 | 6 | 8.58 |
| 75 × 75 | 8 | 10.76 |
| 75 × 75 | 10 | 12.84 |
| 80 × 80 | 4 | 6.12 |
| 80 × 80 | 5 | 7.81 |
| 80 × 80 | 6 | 9.21 |
| 80 × 80 | 8 | 11.54 |
| 80 × 80 | 10 | 13.77 |
| 90 × 90 | 5 | 9.25 |
| 90 × 90 | 6 | 10.4 |
| 90 × 90 | 8 | 13.06 |
| 90 × 90 | 10 | 15.61 |
| 100 × 100 | 6 | 11.6 |
| 100 × 100 | 7 | 13.47 |
| 100 × 100 | 8 | 14.59 |
| 100 × 100 | 10 | 17.48 |
| 100 × 100 | 12 | 20.37 |
| 110 × 110 | 8 | 16.11 |
| 110 × 110 | 10 | 19.3 |
| 110 × 110 | 12 | 22.48 |
| 120 × 120 | 8 | 17.63 |
| 120 × 120 | 10 | 21.12 |
| 120 × 120 | 12 | 24.6 |
| 130 × 130 | 10 | 22.95 |
| 130 × 130 | 12 | 27.54 |
| 130 × 130 | 16 | 36.61 |
| 150 × 150 | 10 | 26.51 |
| 150 × 150 | 12 | 31.57 |
| 150 × 150 | 16 | 41.95 |
| 150 × 150 | 20 | 52.22 |
| 180 × 180 | 12 | 38.22 |
| 180 × 180 | 14 | 44.43 |
| 180 × 180 | 16 | 50.54 |
| 180 × 180 | 20 | 63.57 |
| 200 × 200 | 16 | 48.7 |
| 200 × 200 | 20 | 60.1 |
| 200 × 200 | 26 | 76.8 |
| Unequal angles | ||
| 45 × 30 | 4 | 2.49 |
| 45 × 30 | 5 | 3.07 |
No chart entries match these filters. Try another form, leg size or thickness.
63 entries
Your requirement
Bring us the drawing.
Share the leg dimensions, thickness, grade, length and quantity you need. The chart is a starting point for a conversation, not a confirmation of stock or suitability.
